Spring and Wire Formers
HAX Series
Our turret series formers have the same trusted quality you’ve experienced in smaller Herdon Hybrid formers, but now you can handle larger wire ranges.
Spring Production Equipment
HAX Series Formers
The 16-axis all servo former comes with touch screen programming, moveable slides, rotary wire, 3 standard servo spinners along with an optional double servo spinner or looping station you can take on the large wire jobs without those costly secondary operations.
Features
- Free training in the RK facility with 30 day follow up training in customer's plant
- Full 2 year warranty on parts and labor
- Operations manual both hard copy and PDF file
- Safety hood
- 5 slides (three moveable)
- 8 tool holders
- 3 single top head servo spinners
- Tool box with misc screws and washers
- 3 rotating tool stations
- 3 touch probe kits
- 1 set of tooling
- Full set of metric wrenches

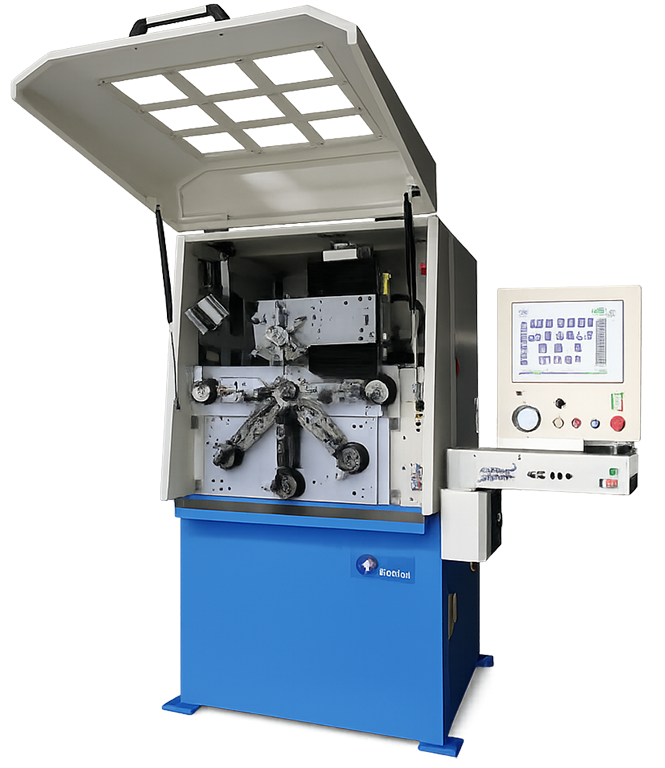

HAX 10
Wire Range
.008"-.040"
Weight
1,000 lbs
Depth
120.5"
Width
176.4"
Height
111.0"

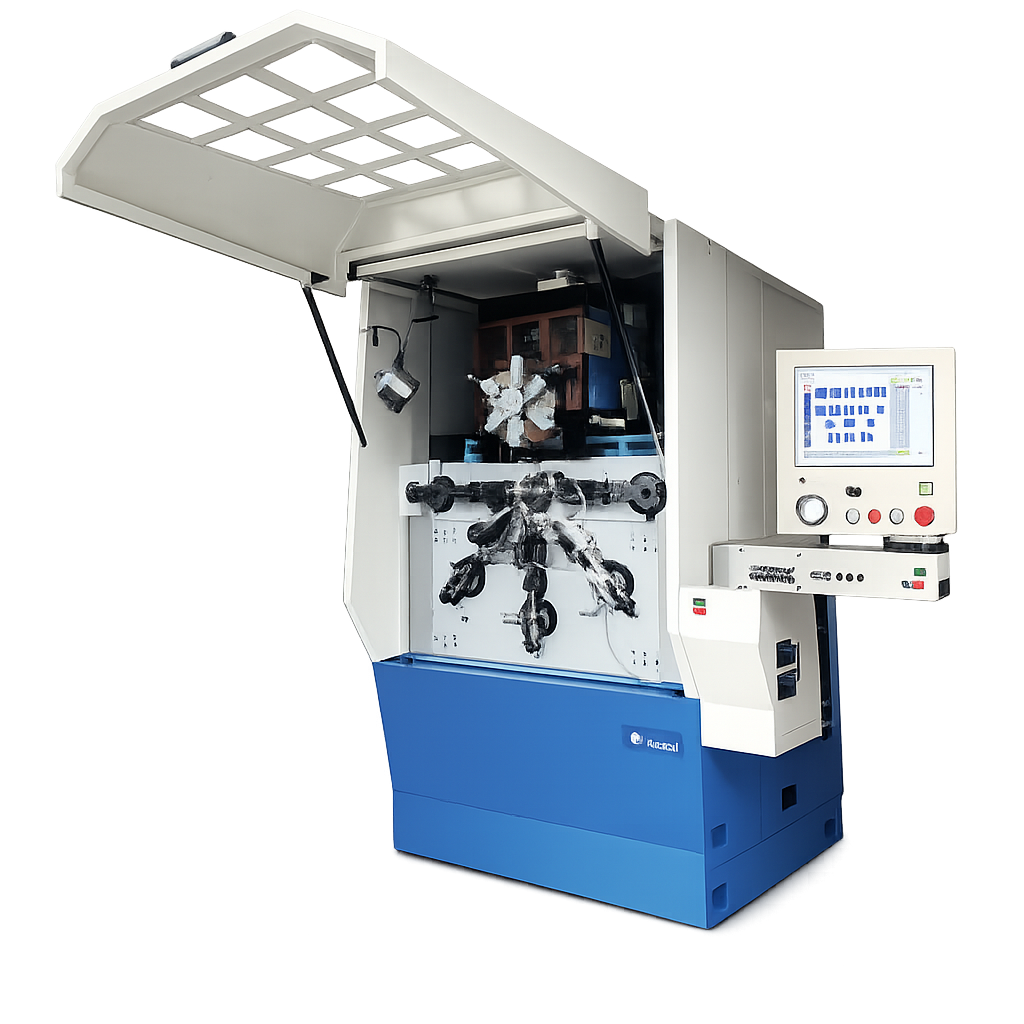

HAX 20
Wire Range
008"-.040"
Weight
3,086 lbs
Depth
48.4"
Width
55.1"
Height
72.8"

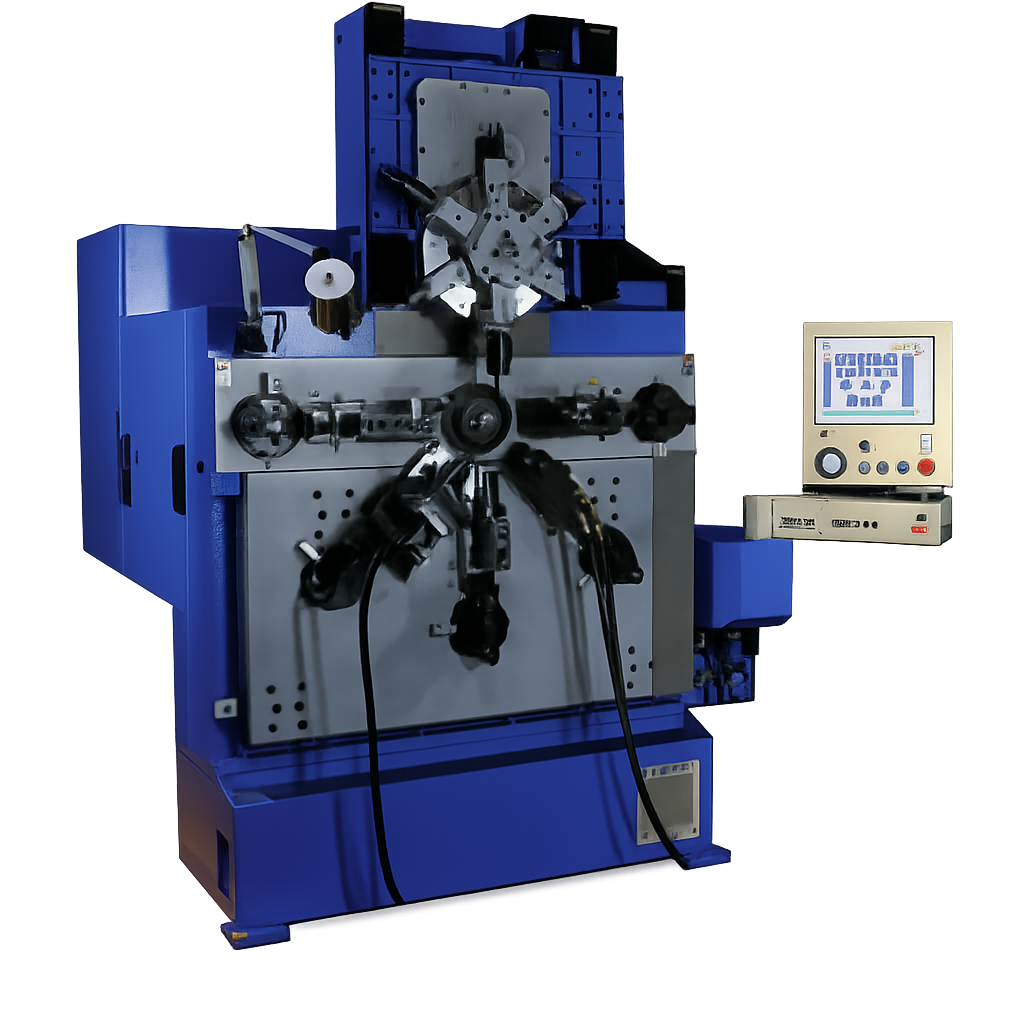

HAX 40
Wire Range
.040"-.156"
Weight
8,818 lbs
Depth
86.6"
Width
106.3"
Height
96.5"

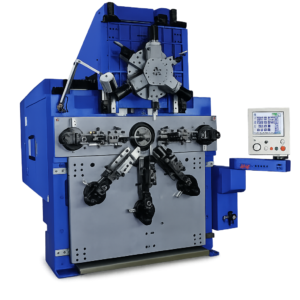

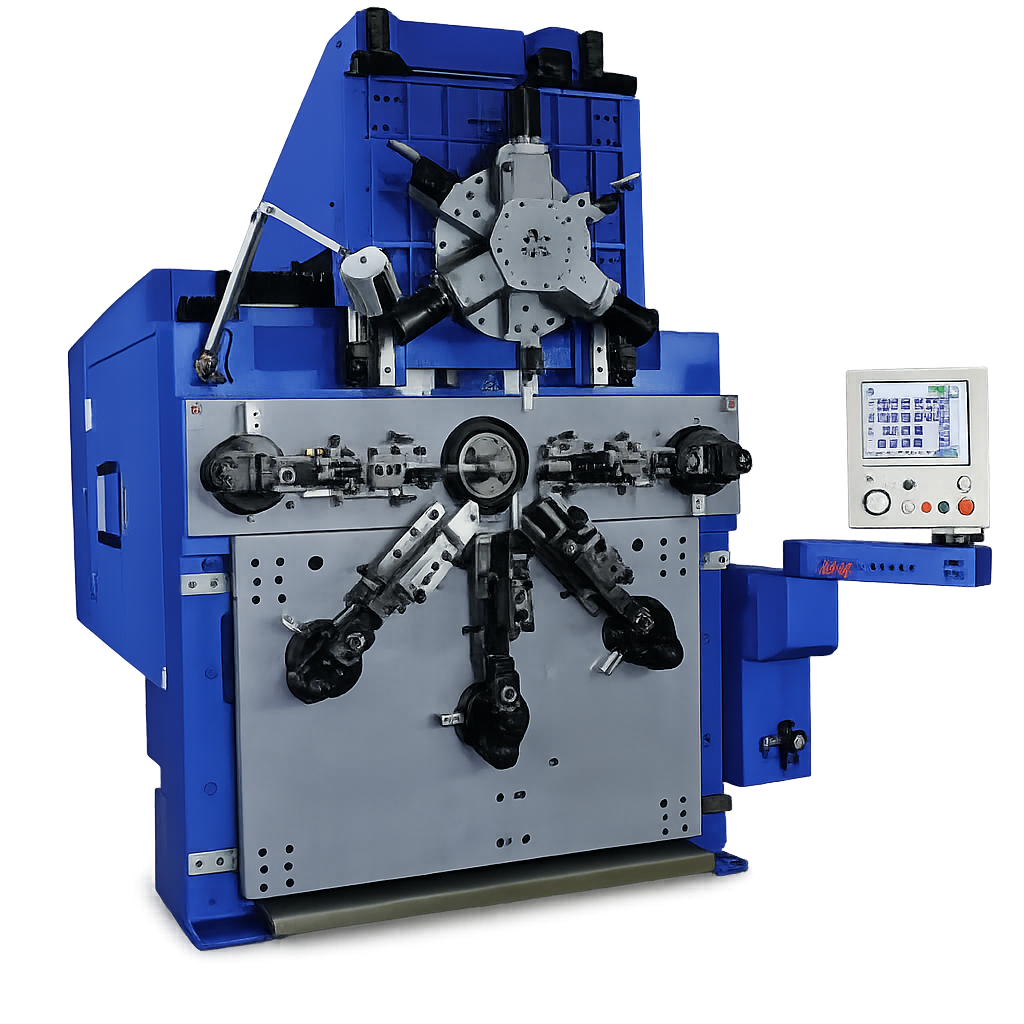

HAX 60
Wire Range
.080" - .236"
Weight
11,464 lbs
Depth
100.4"
Width
143.7"
Height
98.4"

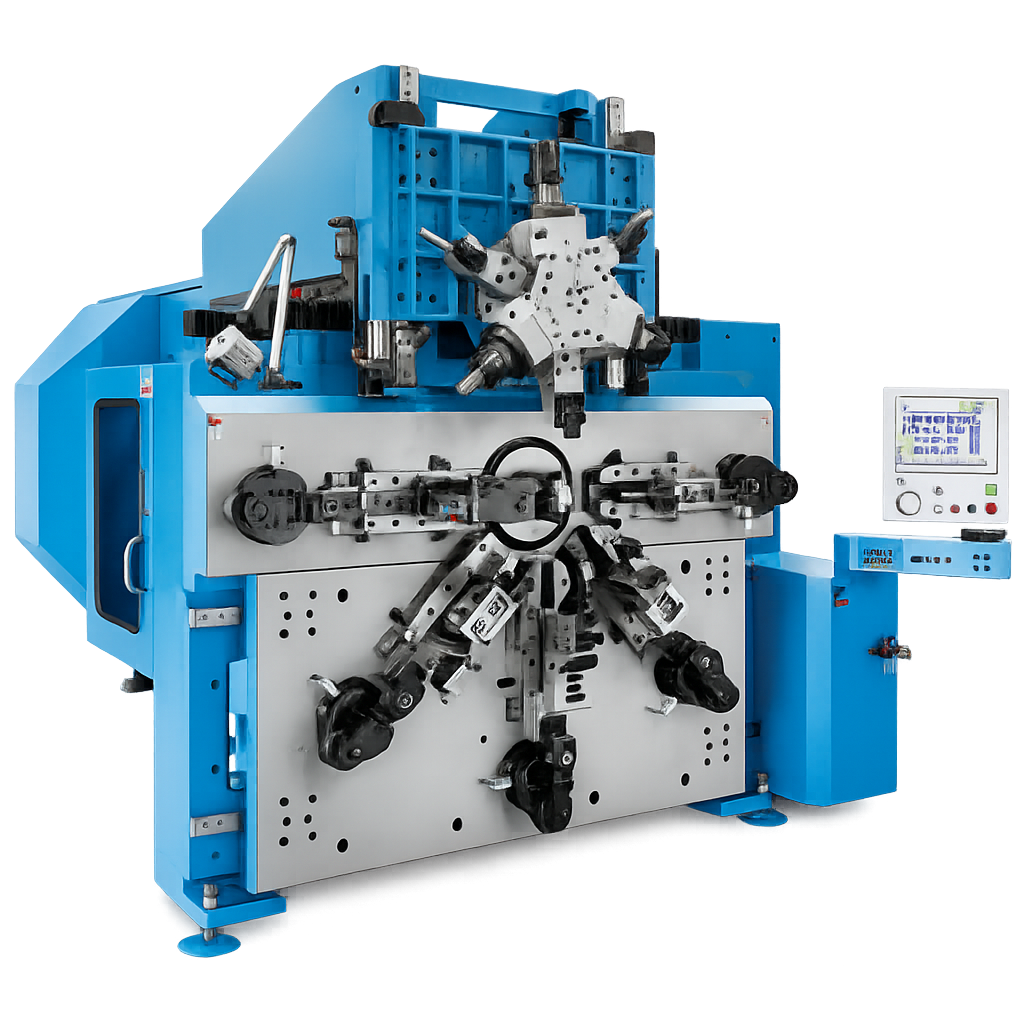

HAX 80
Wire Range
.118" - .312"
Weight
26,455 lbs
Depth
129.9"
Width
192.9"
Height
112.2"
No Hidden Costs
Standard Accessories
All of our HAX series formers come with a host of standard accessories and equipment, so there are no hidden costs or add-on expenses.
- 5 sets of slides
- Tool Holders
- Cams
- Cam Adjusting Blocks
- Air port & touch sensors
- Air Cylinders
- Lamp
- Tool Box
- Auto Reel
Optional Equipment
- Rotating Quill
- Programmable Air-lift Feed Rollers
- Power Transformer
- Safety Guard/Gate
Choose Quality, Choose RK!
At RK Trading, we deliver more than equipment. With reliable Herdon machinery, precision SAS testers, and over 20 years of hands-on industry support, we help spring manufacturers boost efficiency, improve quality, and invest with confidence.
HAX-AT Series Formers
The newest and most efficient model in the HAX Series, this 16-axis wire former is built for advanced versatility and faster production. It includes an AT attachment, a 3D changeable tooling head, and a movable face on the bottom three slides, giving manufacturers greater flexibility for complex wire forming applications.
Features
- 3D Rotating tool holder with 3 tool attachments
- Small ergonomically designed attachment
- Same easy Herdon programming that you are used to
- AT attachment allows wider range of finished wire forms and double torsion springs made start-to-finish on one machine
- No need to move part off machine for secondary operations for completion
- Widen your scope of jobs and increase profit margins
- Increased Repeatability of complex parts

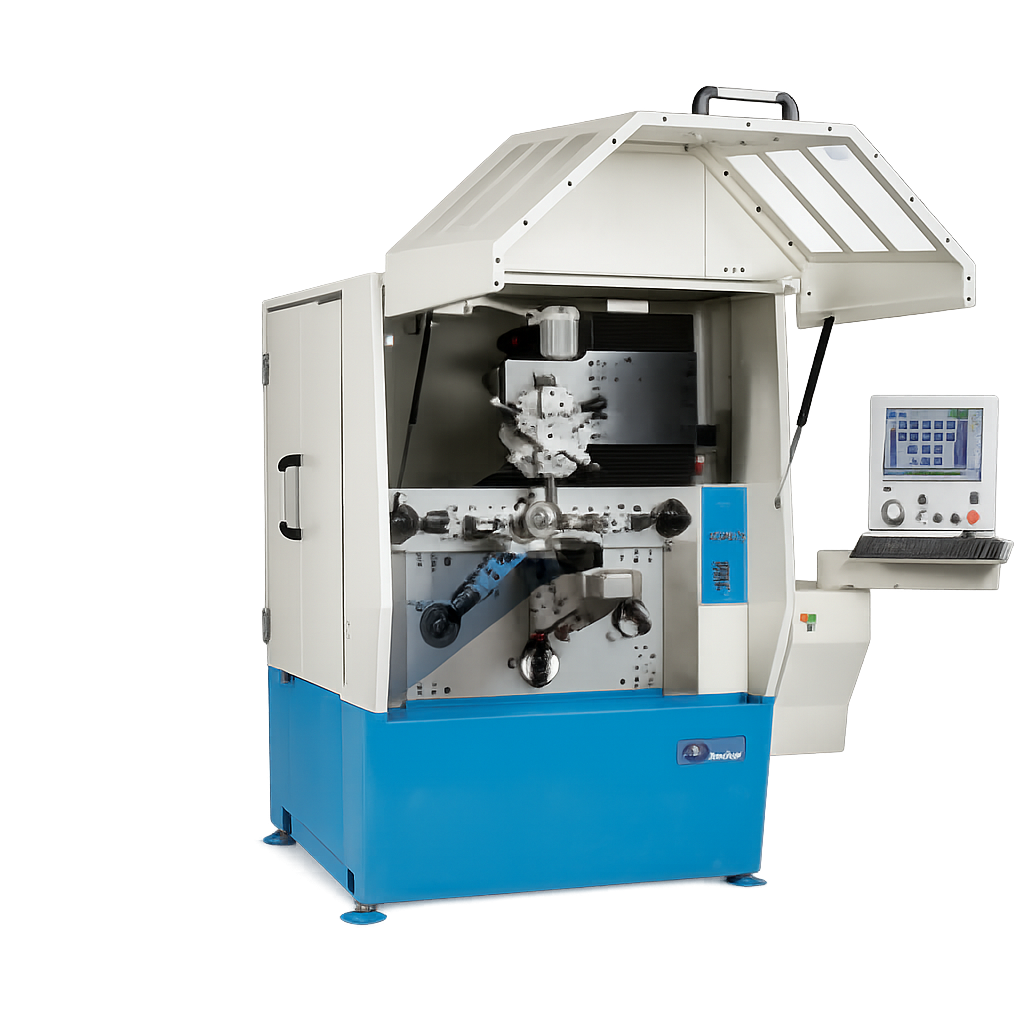

HAX 20-AT
Wire Range
.016" - .080"
Weight
3,086 lbs
Depth
48.4"
Width
55.1"
Height
72.8"

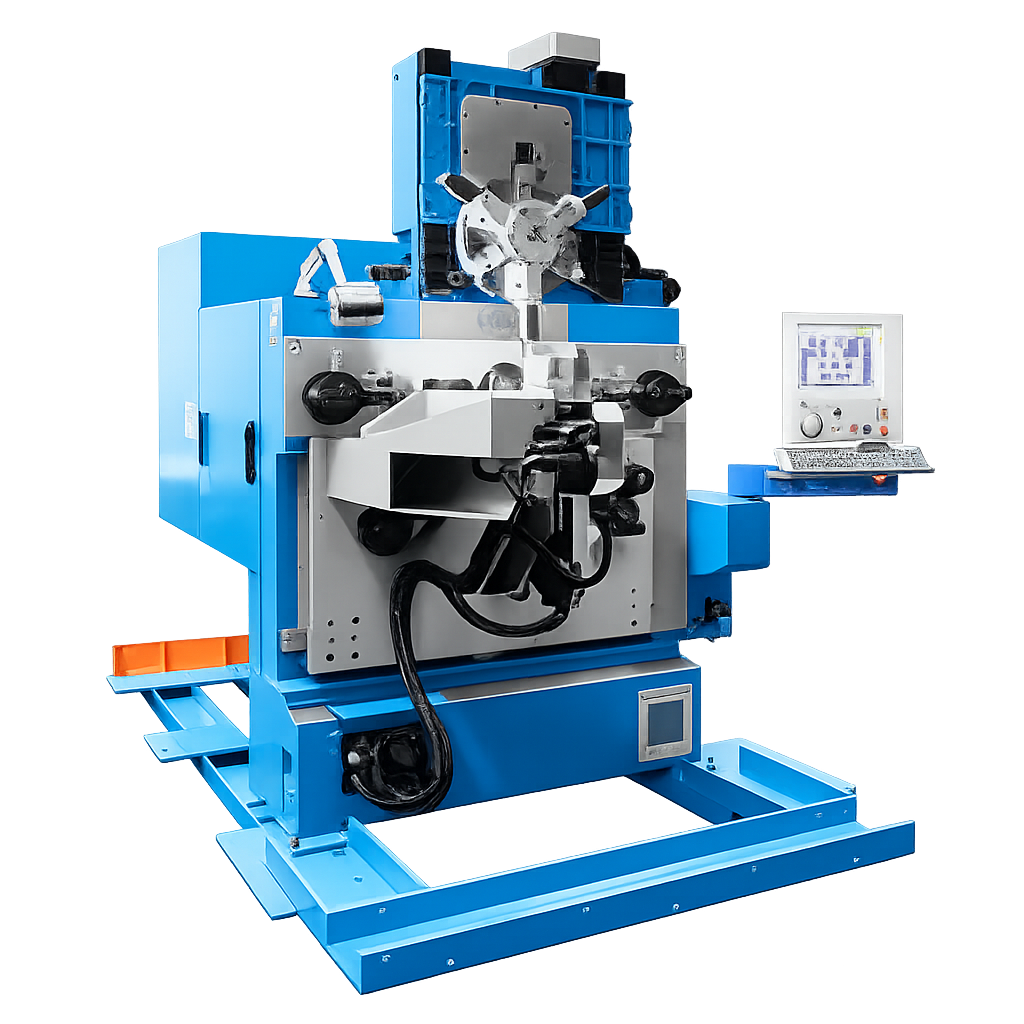

HAX 40-AT
Wire Range
.040"-.156"
Weight
8,818 lbs
Depth
86.6"
Width
106.3"
Height
96.5"
No Hidden Costs
Standard Accessories
- Rotary Wire
- Rotary Quill
- Slides
- Tool Holders
- Air port & touch sensors
- Air Cylinders
- Lamp
- Tool Box
- Auto Reel
Optional Equipment
- Second-Hook Finish Station (EA)
- Full set of Tooling
- Power Transformer
- Safety Guard/Gate
