Spring and Wire Formers

RFM Series

All the same features and benefits of our CSM series but with the added capability of wire rotation.

Spring Production Equipment

RFM Series Formers

Production of springs and wire forms that once required multiple secondary operations can now be done complete, with surprisingly fast set up times and a significant reduction in labor costs. The RFM also has quill and wire rotations synchronization capability for production of shaped wire parts.

Key Features

True Rotating-wire model simplifies the setup of specialty springs or wire forms.
Multiple-axis (8 axis) CNC controller with color display.
Adapt high-precision famous brand Japan made servo motors.
Ruggedly built with hardened parts and tooling.
Central lubrication system is standard for all slides. 6 rollers are used on 30T model to ensure smooth feeding of larger wires.

TEACH function provides an easy, fast way to generate computer program.
TEST mode allows control of program execution by hand.
Auto detection of abnormal/error conditions, e.g. wire feed failure, servo motor alarms, battery low, etc.

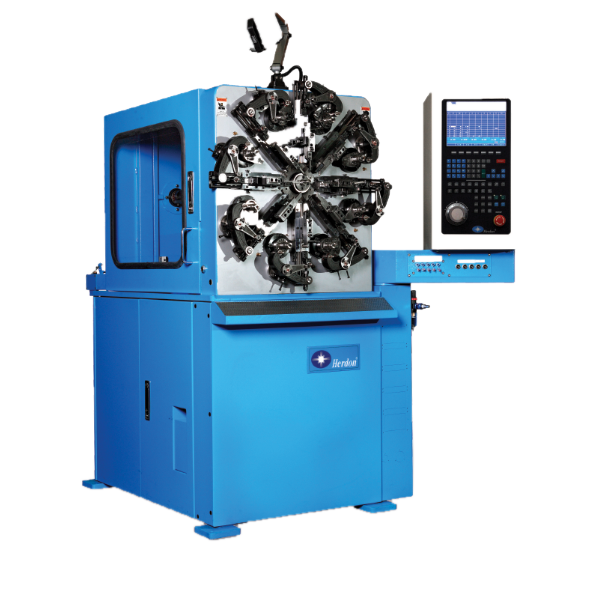

RFM 10

Wire Range

.016" - .040"

Weight

1,808 lbs

Depth

53.5"

Width

47.2"

Height

61.8"

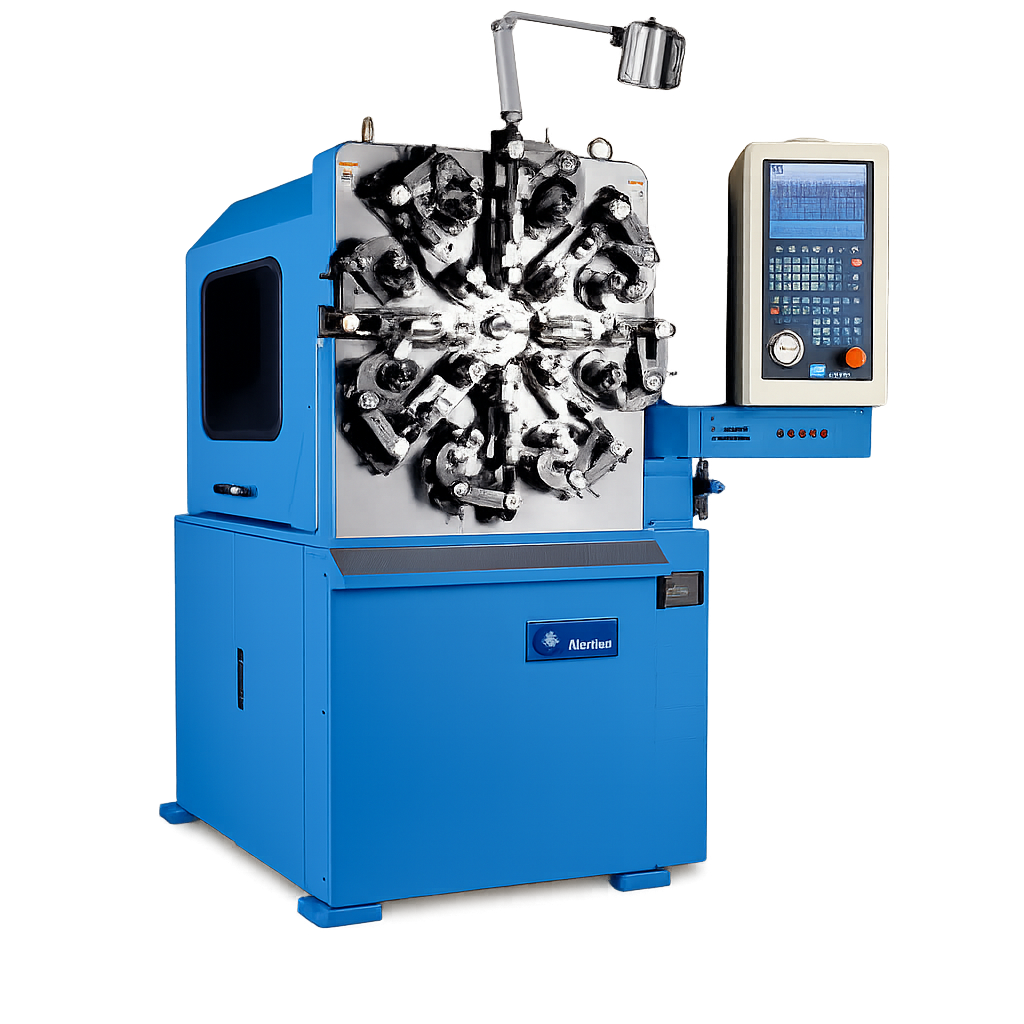

RFM 20

Wire Range

.016" - .080"

Weight

3,307 lbs

Depth

55.1"

Width

61.0"

Height

72.8"

RFM 30

Wire Range

.039" - .118"

Weight

4,630 lbs

Depth

62.6"

Width

73.2"

Height

79.9"

No Hidden Costs

Standard Accessories

All of our HAX series formers come with a host of standard accessories and equipment, so there are no hidden costs or add-on expenses.

Optional Equipment

Choose Quality, Choose RK!

At RK Trading, we deliver more than equipment. With reliable Herdon machinery, precision SAS testers, and over 20 years of hands-on industry support, we help spring manufacturers boost efficiency, improve quality, and invest with confidence.
